Accessibility for Unreal Games

Updated: Sep 6, 2023

Visual Accessibility


Access for visually impaired players


Gaming these days in 2021 becoming much more popular, with steam as a platform peaking around 24 million players, accessibility is becoming more of a need than just a supported feature these days. Around 8% of men and about 0.5% of women suffer from colour blindness (colour vision deficiency) this amounts to nearly 10% of players, around 3.38% of the world population are visually impaired with blindness.


How as engineers can we tackle adding support?


Most engineers reading this know, adding layers of support on top of systems is not easy to do in a robust, efficient way. It takes development time and a lot of solutions can couple them self in to other systems, which can make things difficult for development.

I am going to showcase some methods and ways we can add accessibility with to a project.


Accessibility tools and simulating being visual impaired


We can't perfectly simulate what It's like to be visually impaired, but we can put together tools to simulate things to give us a good idea of what players might be seeing.

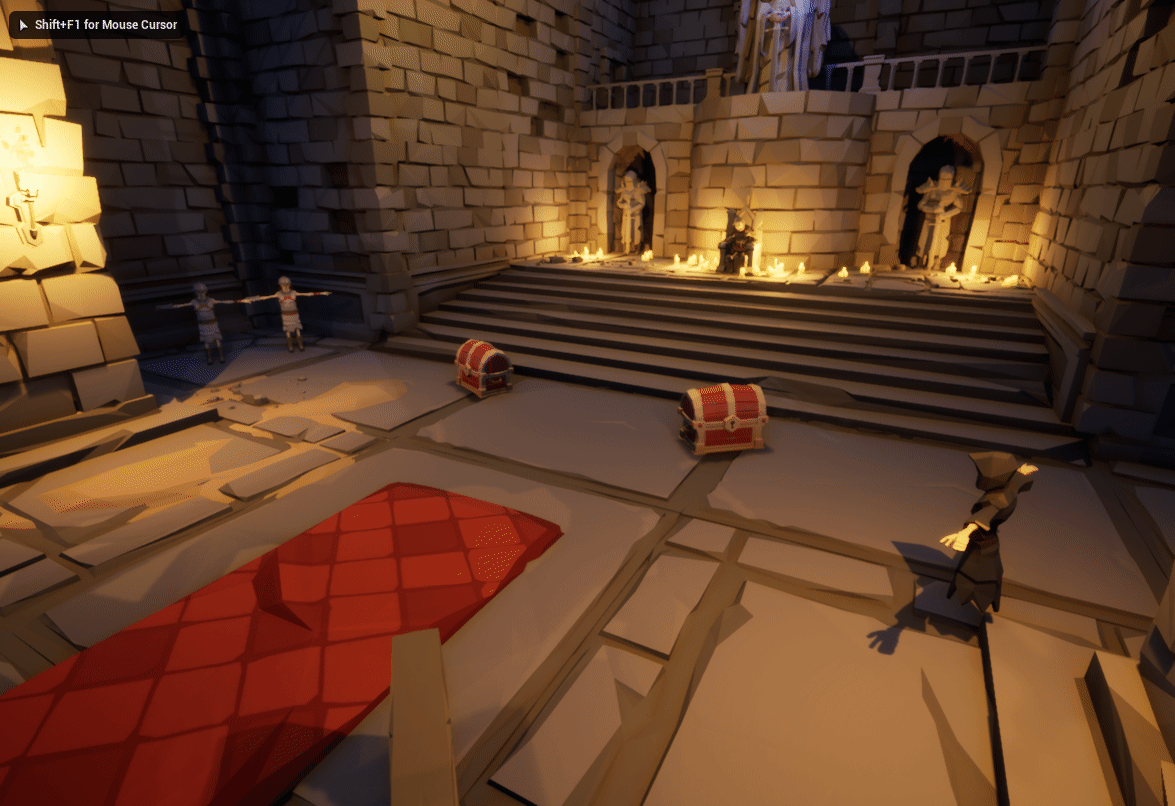

Visual Blur



Having a visual blurr preview is extremely useful, there are many ways to do this but an easy way is to leverage a UMG blur widget over the screen. This allows us to simulate how someone with blurry vision may see the game, this helps to reflect a lot on things like the geometrical shape of levels and how colour themes could be blending.

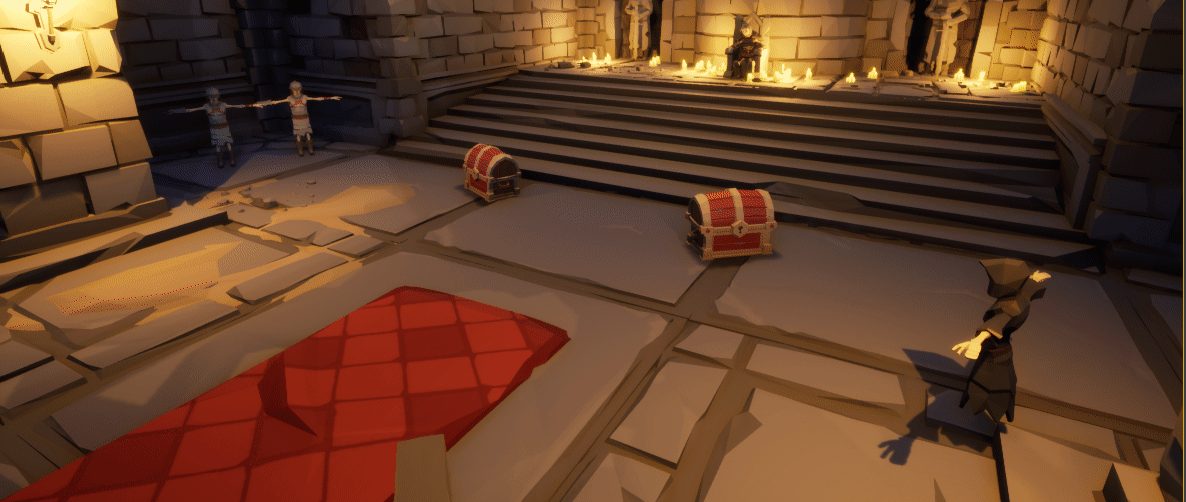

Colour Deficiency

Using a colour LUT we can apply Post processing over our scene to view things from colour deficiency perspective.

These can be found for free in the epic 4.26 accessibility demo


Setting up a tool to cycle through the post-processing colour LUT is an effective way to easily view the project and once again reflect on colour themes and how things could possibly be blending.



Solutions to add multiple types of support that cooperative

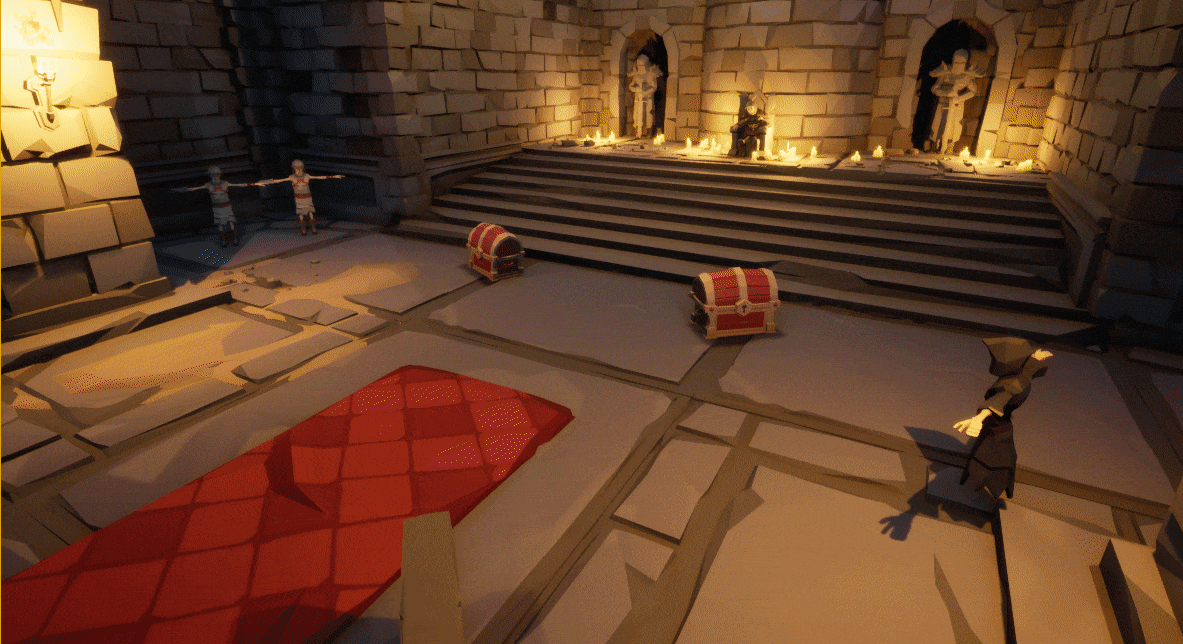

Entity Highlighting

Entity highlighting is a great way to add definition and clarity to many types of visually impaired people.



Using a material parameter collection, we can control a set of vector4 variables that can be used to apply base colour changes to the base colour and emission. These can help to highlight and focus important objects for people who are struggling to define entities in game.



This sort of control could even be interlinked in to a mastery material using a switch system to easily define what type of entities get what offset value.



note this is just an example and not an exceptionally efficient way to do this, its possible doing it this way and applying changes to the master material(s) could cause cascading shader recompiling

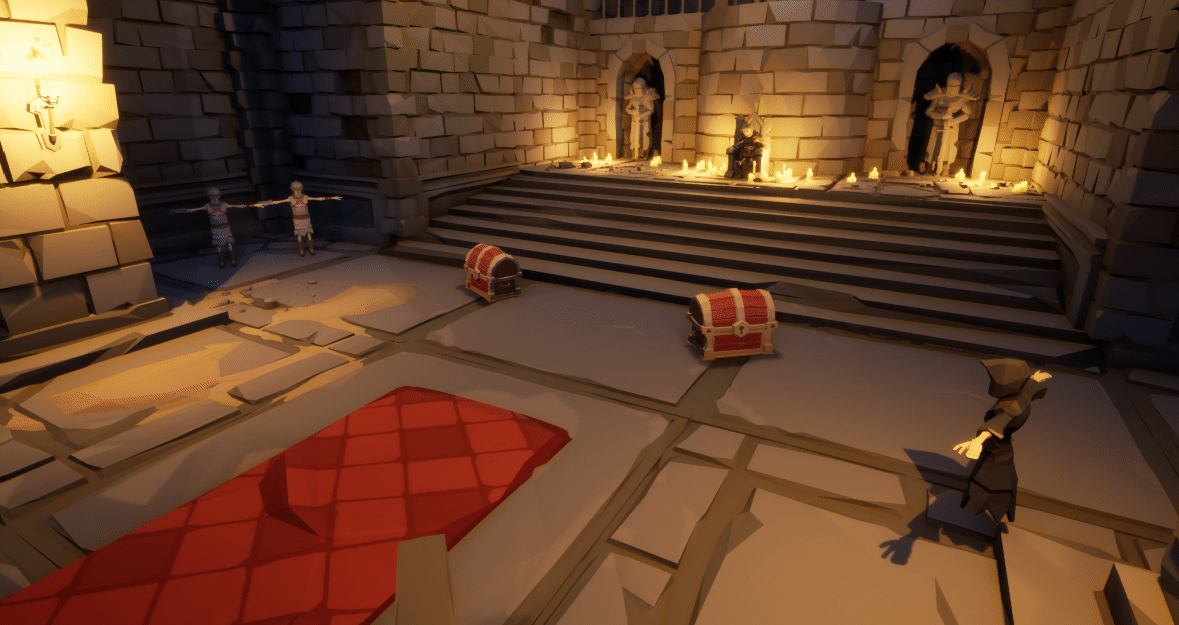

High contrast Entities

Applying a high contrast post processing can be a great way to really help define important entities in the scene, as using just colour entity highlighting might just not suite everyone's needs.



We can use a custom stencil value from custom depth pass to drive a post-processing material to saturate out of the colours of entities not in our specified stencil range, this can be achieved pretty easily.


note this method has limitations and does not cooperate with transparent materials

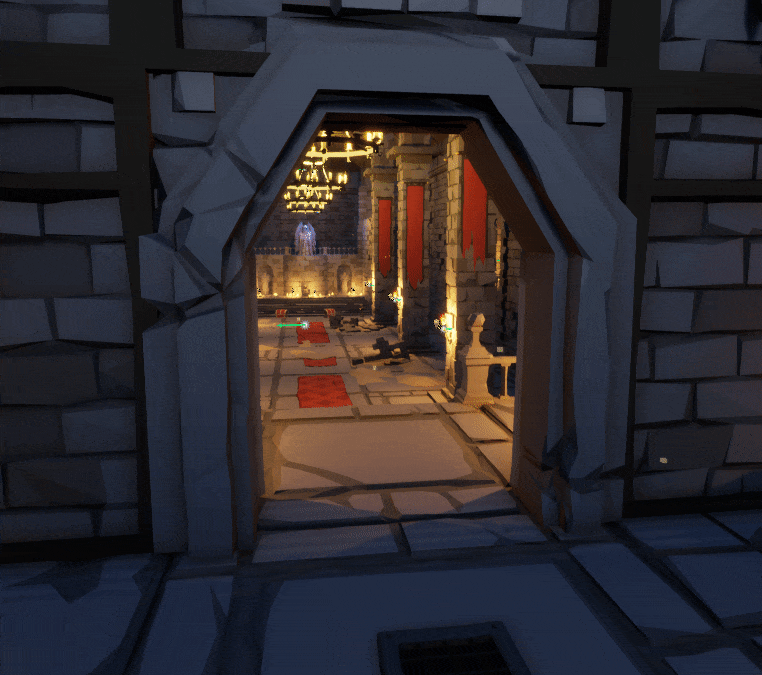

Pathing - Highlighting entrances

When it comes to pathing we want to be able to effectively and quickly mark pathing visual support down without ending up with the support becoming coupled with systems like doors. One way to tackle this is by having a dynamic actor, you can place in your doorway that will use some material magic to apply support for door highlighting and high contrast support.



I create an actor that can be easily dragged and dropped in, and all the designer has to do is is scale them approximately around the entrance. These also carry functions that can be leveraged to toggle them off and on so things like locking doors etc can easily hook in to neighbouring path entrance actors.



Colour Deficiency

Luckily when leveraging unreal engine 4 tools, colour deficiency is just a node click away, it requires very little setup.



This handy little node sets support for the Deuteranopia, Protanopia and Tritanope, with severity control. Also options for correct deficiency and show correction.

Screen reader support

This is another easy one, it requires only to Accessibility.Enable=1 enabling third-party screen reader software to be able to read UI elements, this can be customized on accessibility options in the UMG widgets.


note: as of 4.26 this is classed as a experimental feature and Epic do not recommend shipping projects with it

End notes

There are lots of other things that can be done to help give support, individual or group UI scaling, audio cue's on UI navigation, disabling disruptive effects like shake and flash etc. Having a good core system that will play cooperatively with visibility support is very important as multi layers of visual support will be needed by some individuals.
